1/2 inch Air Impact Wrench 7500RPM
Function
(1) Durable twin hammer design.
(2) Cylinder with steel sleeve provide durability and extends the tool’s life.
(3) Compact design but powerful for working in tight spaces.
(4) Lightweight with composite housing.
(5) Twin push button F/R.

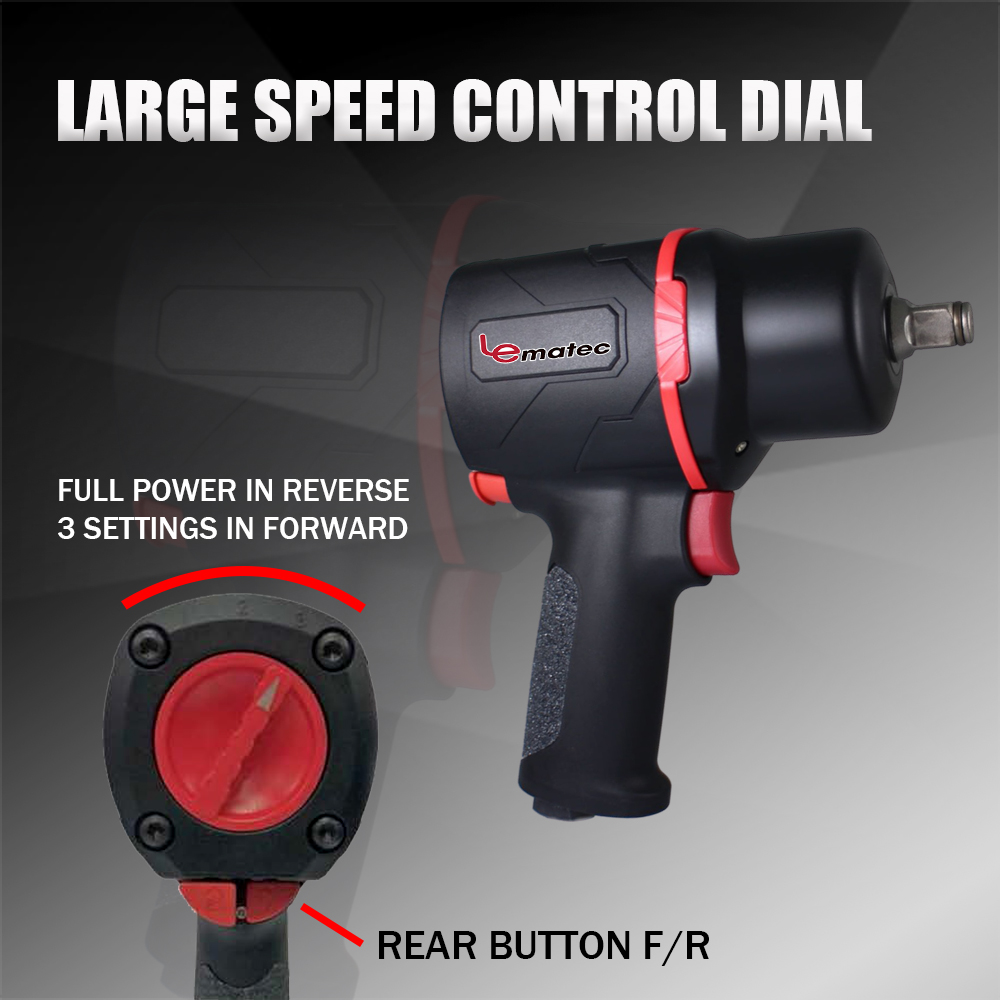

(6) Full power in Reverse 3 settings in forwarding.
(7) Feather trigger.
(8) Textured grip.
*LE-TH3960A is a high-performance 1/2-inch air impact wrench with high torque and is lightweight.
*Ideal for tire work, body shop, engine work, automotive, woodworking, furniture repair, industry application...etc.
*Driver Size option: 3/8", 1/2", 3/4", 1"
*We can offer OEM(customized) service.
(1) Durable twin hammer design.
(2) Cylinder with steel sleeve provides durability and extends the tool’s life.
(3) Compact design but powerful for working in tight spaces.
(4) Lightweight with composite housing.
(5) Twin push button F/R.
(6) Full power in Reverse 3 settings in forwarding.
(7) Feather trigger.
(8) Textured grip.
Specification
- Model: LE-TH1361A
- Driver Size: 1/2"
- Free Speed: 7500 rpm
- Working Torque:150~800 ft-lb
- Max Torque: 1000ft-lb
- Busting Torque: 1400 ft-lb
- Wight: 1.82 kg
- Length: 165 mm
- Inlet ( NPT ): 1/4"
- Clutch Type: Twin Hammer
- Minimum Hose Size: 3/8"
- Air Consumption: 4.9 SCFM
- Full Power in Reverse, 3 Settings in Forward
- Model: LE-TH1361A
- Anvil Size:3/4"
- Free speed:5000rpm
- Average Air consumption ( 25% ):11.3 scfm
- Bursting Torque:2440 N-m/1800 Ft-lb
- Working Torque:1627N-m/1200 Ft-lb
- Exhaust: Handle
- Clutch Type:Twin Hammer
- Air Inlet:3/8"
- Length:210mm/8.3 inch
- Weight:3.4 kgs/7.5Lbs
- Model: LE-TH1361B
- Anvil Size:1"
- Free speed:5000rpm
- Average Air consumption ( 25% ):11.3 scfm
- Bursting Torque:2644 N-m/1950 Ft-lb
- Working Torque:1763N-m/1300 Ft-lb
- Exhaust: Handle
- Clutch Type:Twin Hammer
- Air Inlet:3/8"
- Length:213mm/8.4 inch
- Weight:3.6 kgs/7.9 Lbs
How to use LE-TH3960A pneumatic impact torque wrench?
