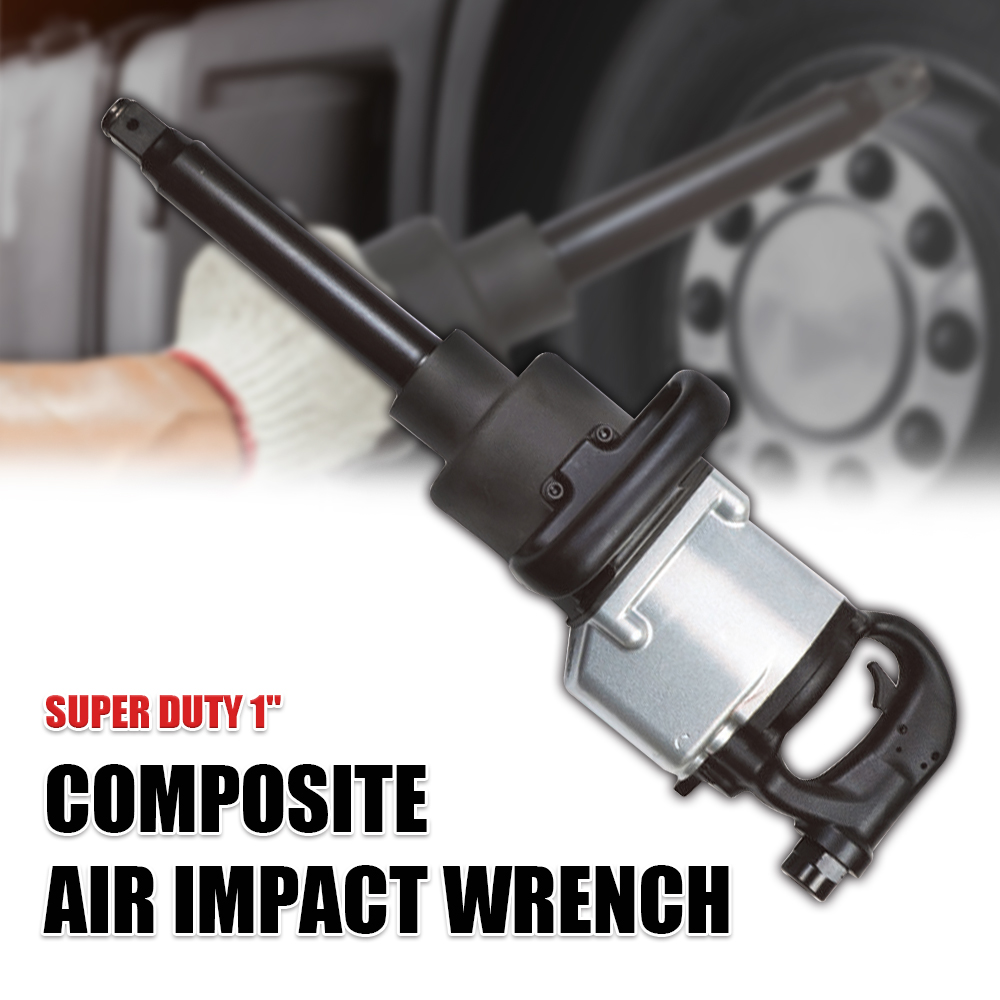

1 inch Air Impact Wrench for Industry 3600RPM
Function

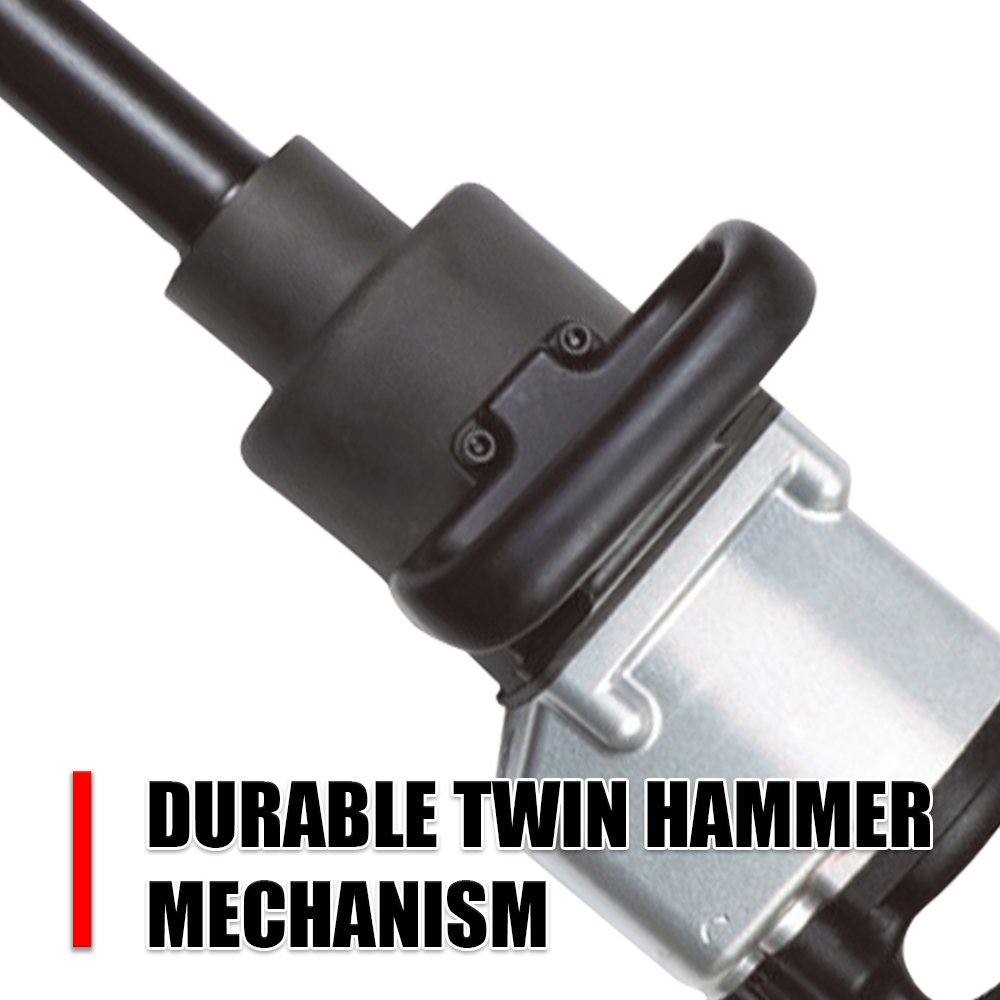

- Durable Twin Hammer Mechanism.
- Magnesium alloy front cover.
- Comfort Rubber Grip.
- Composite housing for light weight.
- Low vibration for user friendly.
- Ideal for heavy track tire work, heavy mechanical equipment work.
- Made in Taiwan

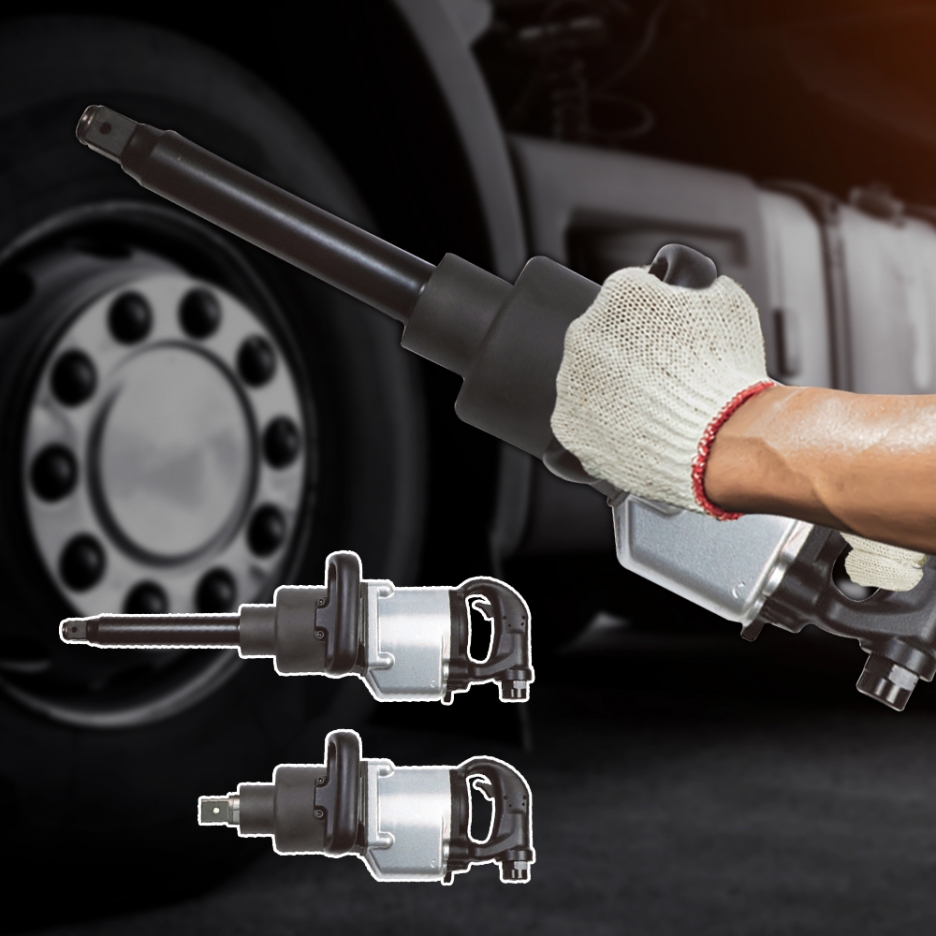

Item No. LE-AIP01/02, 1 inch heavy duty air impact wrench for industry/truck/professional

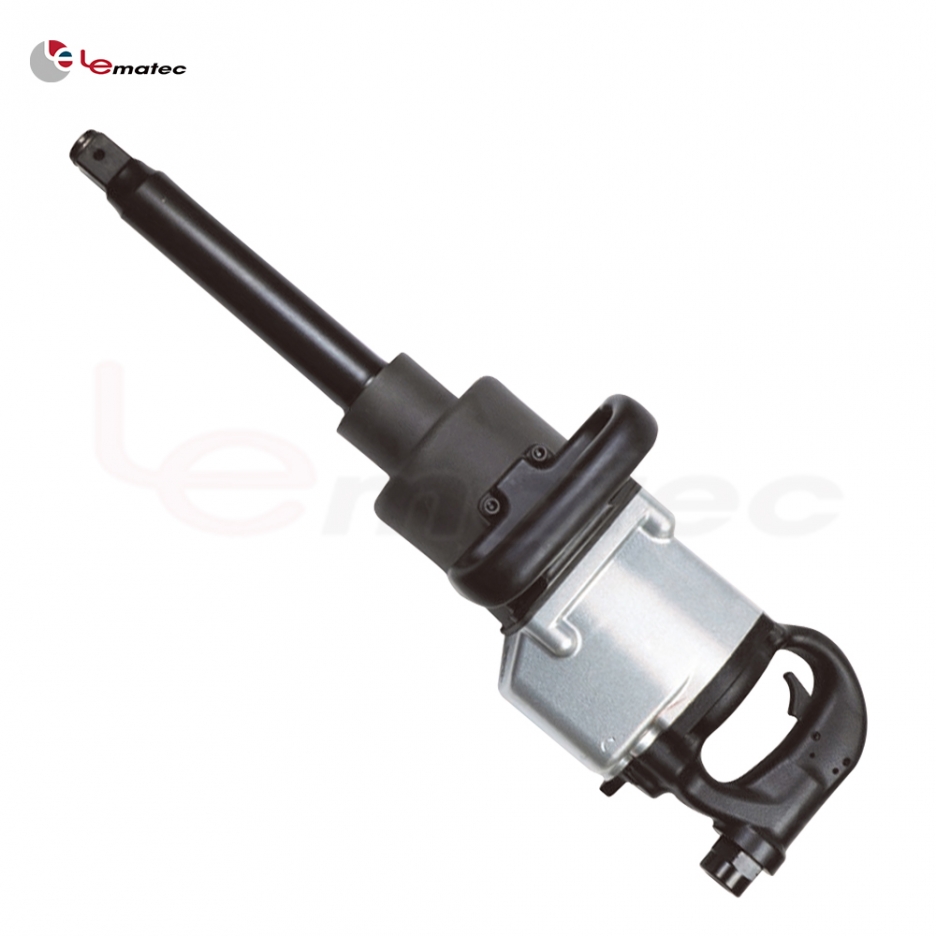

LE-AIP-1 Impact
Type: Twin Hammer
Anvil Size: 1 inch
Free Speed: 3,600 rpm
Working Torque(@5 Sec):2,500 ft-lb/3,375 Nm
Max. Torque(@15 Sec):2,800 ft-lb/3,780 Nm
Nut-Busting Torque:3,000 ft-lb/4,050 Nm
Product Weight:11.7 kg/25.8 lb
Product Length:550 mm/21.65 inch
Air Consumption:312 l/min (11.0 cfm)
Air Inlet Pressure:6.3 kg/cm2 (90 psi)
Air Inlet Size:1/2 inch
Air Hose I.D.:1/2 inch

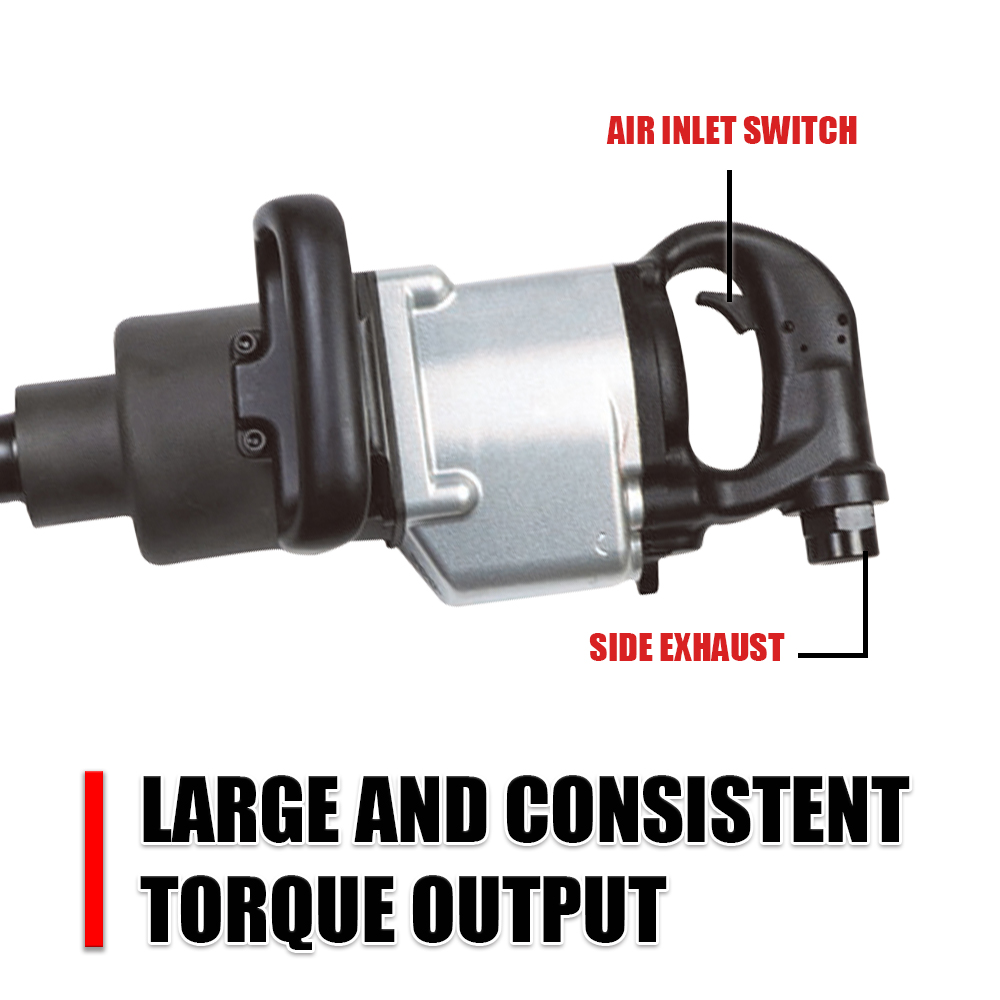

Exhaust Type:Side Exhaust
Sound Pressure:101.5 dB(A)
Vibration Level:15.3 m/s2

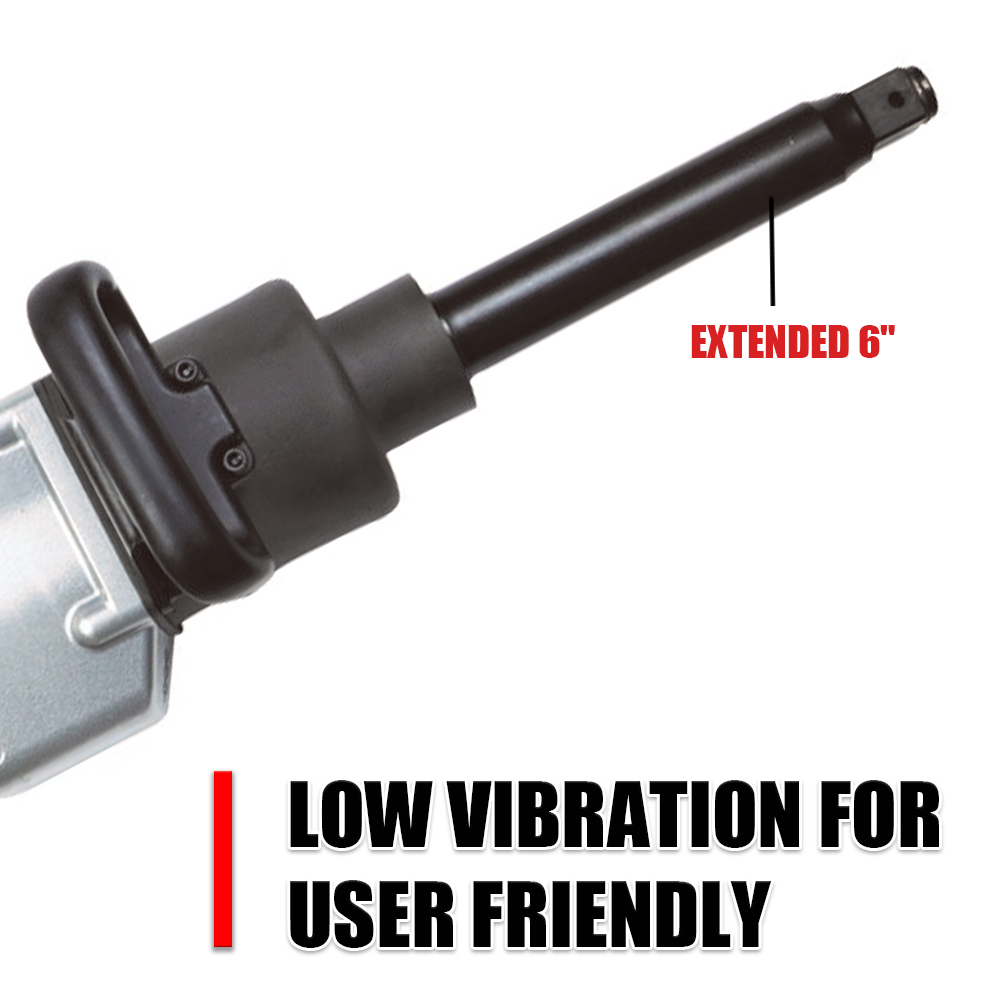

Remark:Blade with spring mounted Extended 6"

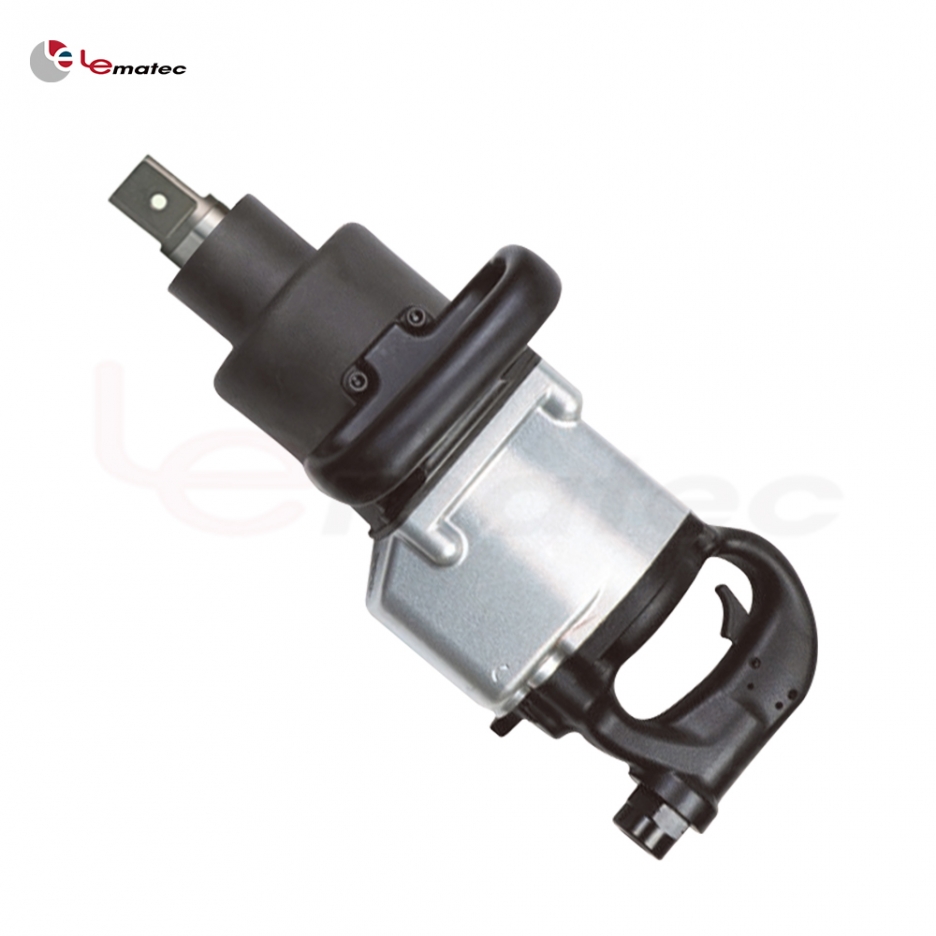

LE-AIP-2 Impact
Type: Twin Hammer
Anvil Size: 1 inch
Free Speed: 3,600 rpm
Working Torque(@5 Sec):2,500 ft-lb/3,375 Nm
Max. Torque(@15 Sec):2,800 ft-lb/3,780 Nm
Nut-Busting Torque:3,000 ft-lb/4,050 Nm
Product Weight:10.5 kg/23.6 lb
Product Length:398 mm/15.66 inch
Air Consumption:312 l/min (11.0 cfm)
Air Inlet Pressure:6.3 kg/cm2 (90 psi)
Air Inlet Size:1/2 inch
Air Hose I.D.:1/2 inch
Exhaust Type:Side Exhaust
Sound Pressure:101.5 dB(A)
Vibration Level:15.3 m/s2
Remark:Blade with spring mounted
